Hikvision DS-KD-KP Modular Intercom Keypad
1 1
Hikvision

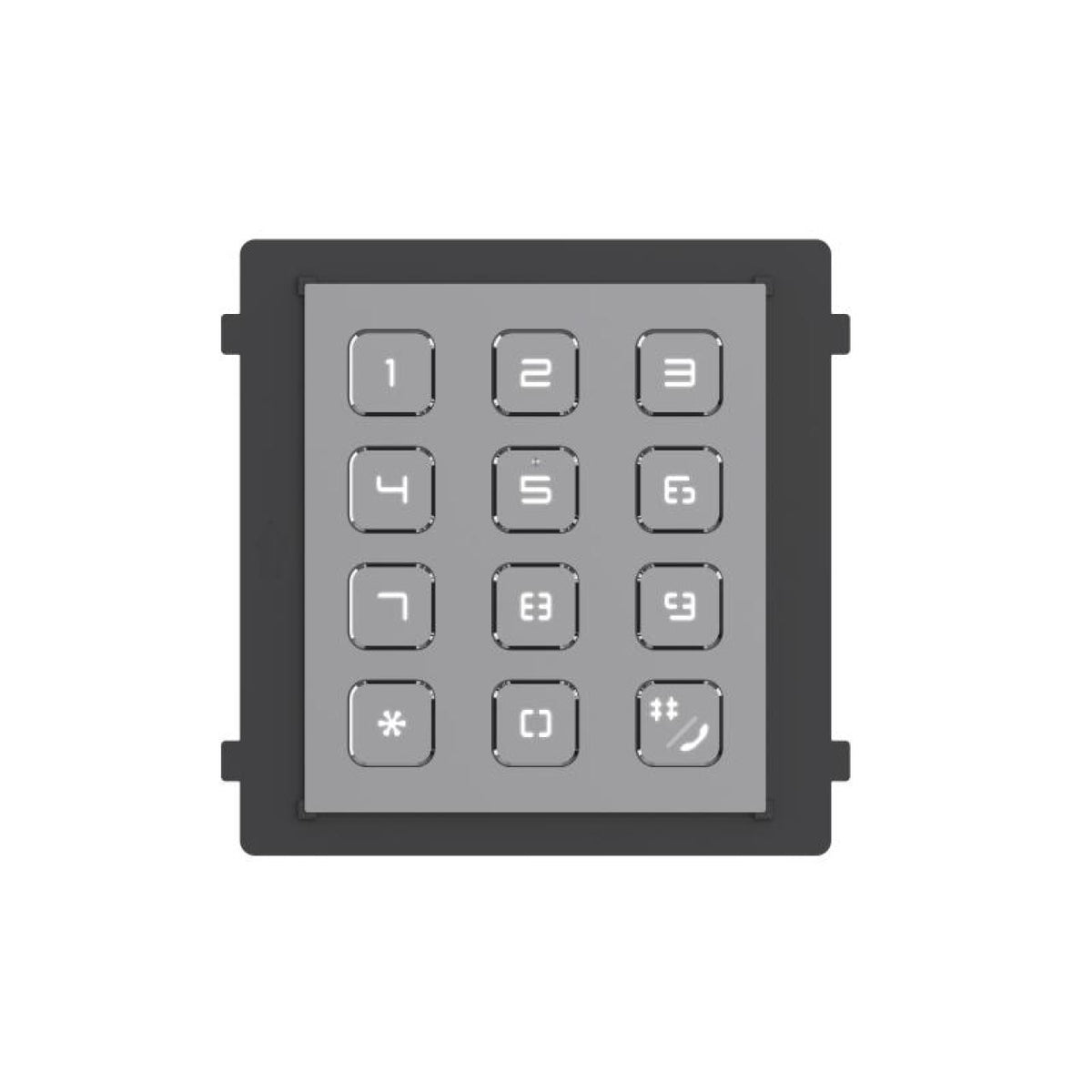

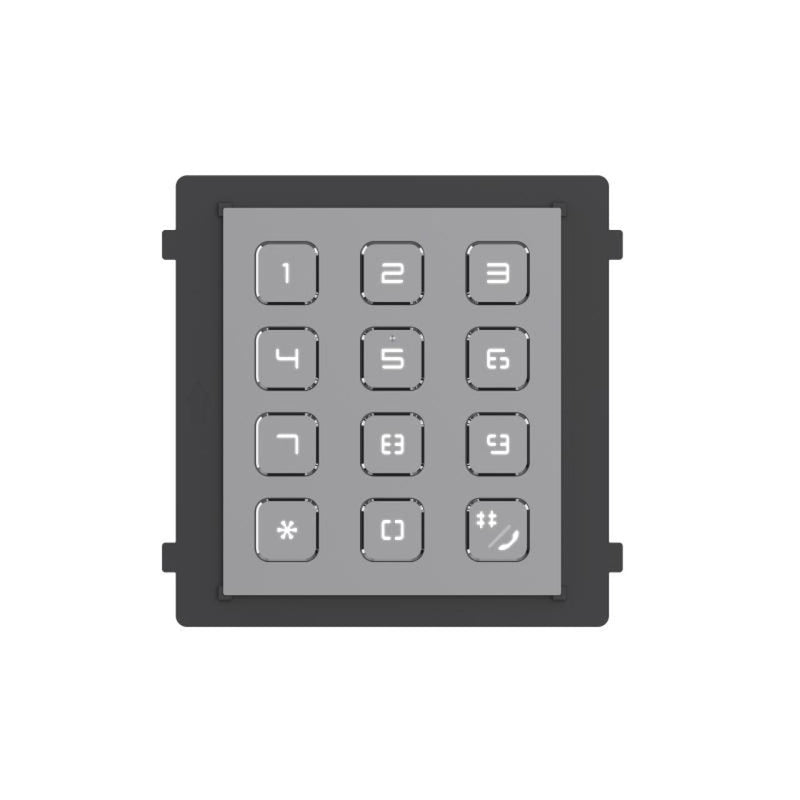

Hikvision DS-KD-KP Modular Intercom Keypad

SKU: DS-KD-KP
Description

The Hikvision DS-KD-KP is a keypad module for a compatible modular video door station. It adds PIN-code entry for door release and the ability to call an indoor station, with backlighting behind the keypad buttons. The module has an RS-485 interface, supports surface or flush mounting within the appropriate assembly, and carries an IP65 protection rating. It measures 98.5 mm by 100 mm by 34.2 mm and weighs 265 g. Select the compatible main door station and mounting frame separately; this keypad is an extension module, not a standalone network door station or an alarm-system keypad. Download the official Hikvision datasheet (PDF).
$157.00 AUD $157.00 AUD $164.85 AUD
Sale 4.76% $7.85 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KD-KP is

The Hikvision DS-KD-KP adds keypad input to a modular door-entry installation. PIN entry and indoor-station calling provide different ways to interact with the configured system.

Select it as part of a supported main-module and mounting combination. Backlit keys improve visibility at the entrance, but the module still needs the compatible door-station system to carry out access and calling functions.

§ 03Full datasheet

Detailed specifications

Function

Function — Hikvision DS-KD-KP Modular Intercom Keypad
FeatureDetail
Role Modular door-station keypad
Functions PIN door release; indoor station calling
Buttons 12
Interface 1 RS-485
Backlighting Yes
Power consumption 1 W
