Hikvision DS-KD-ACW3 Three-Module Surface Mount Housing
1 1
Hikvision

Hikvision DS-KD-ACW3 Three-Module Surface Mount Housing

SKU: DS-KD-ACW3
Description

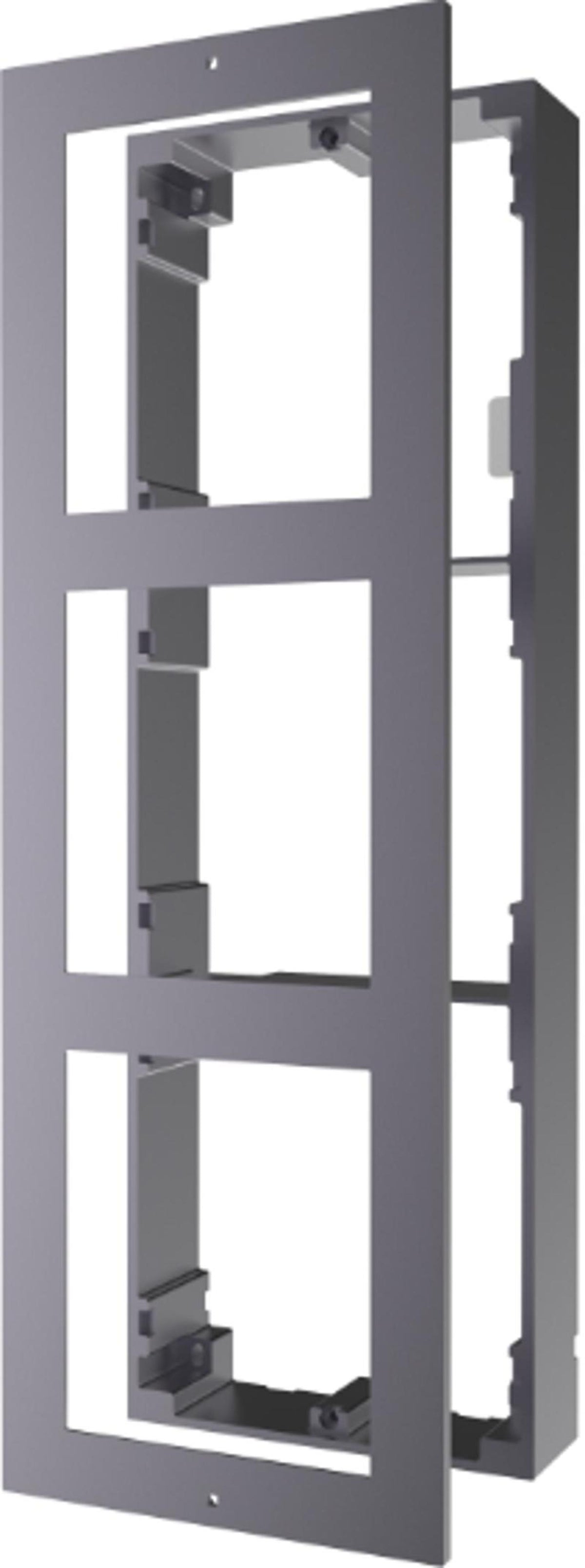

The Hikvision DS-KD-ACW3 is an aluminium surface-mount housing for a compatible three-module video intercom arrangement. It provides the three-module frame and front panel, a button cover and associated installation accessories. The installation frame measures 320.8 mm by 107 mm by 32.7 mm, giving a defined footprint for planning the entrance layout. Use the available module positions for a supported door-station and function-module combination. Electronic modules and any required protective shield must be selected separately. This is the surface-mount version, so it should not be substituted for a recessed installation box or treated as a complete intercom kit. Download the official Hikvision datasheet (PDF).
$171.00 AUD $171.00 AUD $179.55 AUD
Sale 4.76% $8.55 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KD-ACW3 is

The Hikvision DS-KD-ACW3 provides the mounting structure for a three-module door-entry layout. It is useful when the entrance needs more functions than a single module can provide.

Check the wall space, module combination and mounting method before purchase. Surface and flush housings use different installation arrangements; select the frame to match the planned build, not just the appearance of the front panel.

§ 03Full datasheet

Detailed specifications

Housing

Housing — Hikvision DS-KD-ACW3 Three-Module Surface Mount Housing
FeatureDetail
Material Aviation aluminium
Installation Surface mounting
Module capacity 3
Net weight 500 g
Frame width 320.8 mm
Frame height 107 mm
Frame depth 32.7 mm
Cover depth 4 mm
