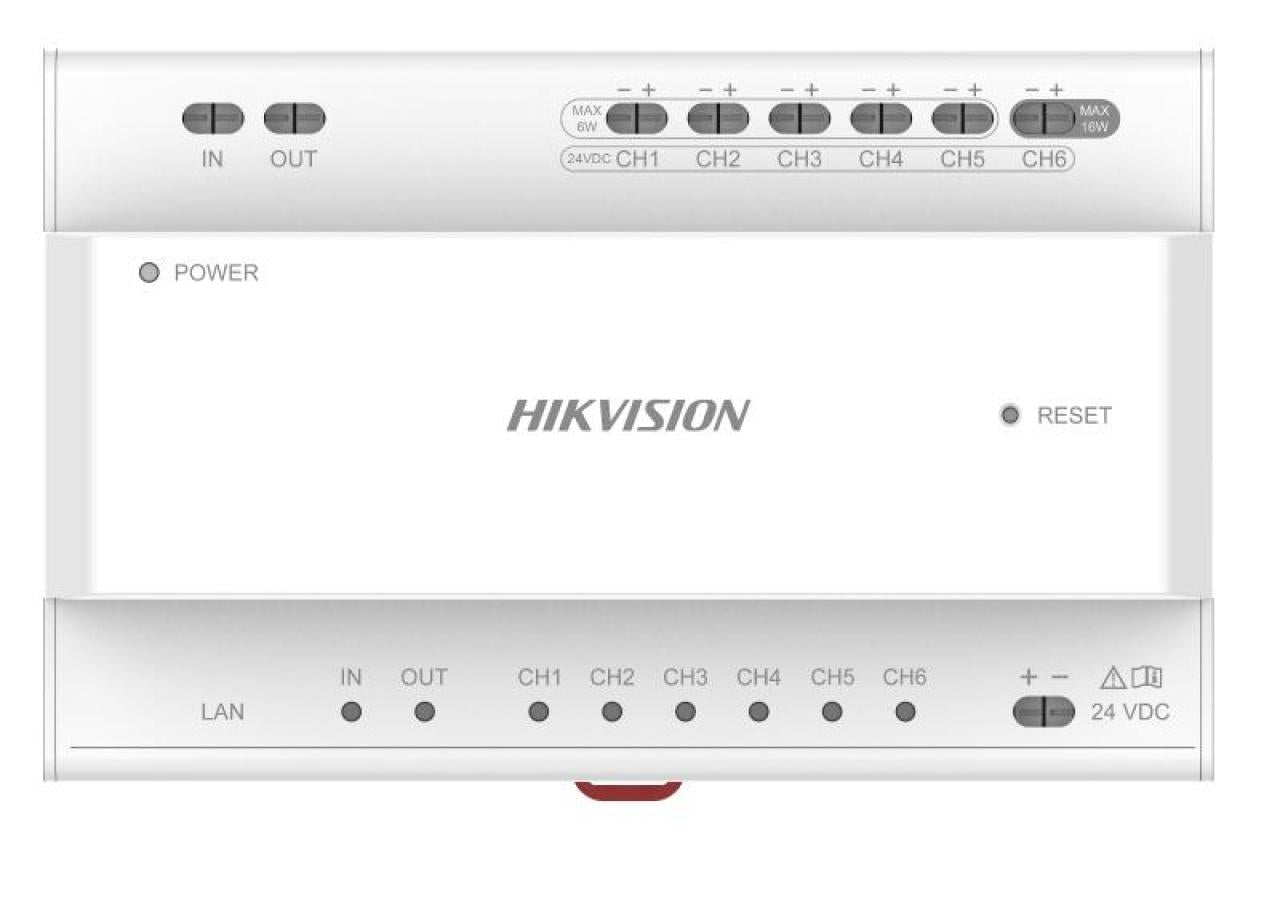

Hikvision DS-KAD706Y-P Two-Wire Distribution Unit
1 1
Hikvision

Hikvision DS-KAD706Y-P Two-Wire Distribution Unit

SKU: DS-KAD706Y-P
Description

The Hikvision DS-KAD706Y-P is a two-wire IP distribution unit for a compatible Y-series video intercom system. It provides six two-wire device interfaces with power supply, two cascade interfaces and an RJ45 connection. The cascade interfaces support DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series units. It uses a 24 VDC input and DIN-rail mounting. The channel specifications differ: CH1 to CH5 are below 6 W each, while CH6 is below 16 W. Select the compatible door and indoor stations and a suitable power source for the complete system. This is not a general-purpose PoE network switch. Download the official Hikvision datasheet (PDF).
$135.00 AUD $135.00 AUD $141.75 AUD
Sale 4.76% $6.75 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KAD706Y-P is

The Hikvision DS-KAD706Y-P links compatible two-wire intercom devices within a Y-series installation. It is a system distribution component, so choose it around the connected stations and planned cascade layout.

The six device channels do not have identical power limits. Check the intended device on each channel and the DC supply arrangement before completing the system design.

§ 03Full datasheet

Detailed specifications

Interfaces

Interfaces — Hikvision DS-KAD706Y-P Two-Wire Distribution Unit
FeatureDetail
Role Two-wire IP distribution unit
Device interfaces 6; with device power supply
Cascade interfaces 2; DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series
Ethernet 1 RJ45
Interface indicators 8
Reset buttons 1
