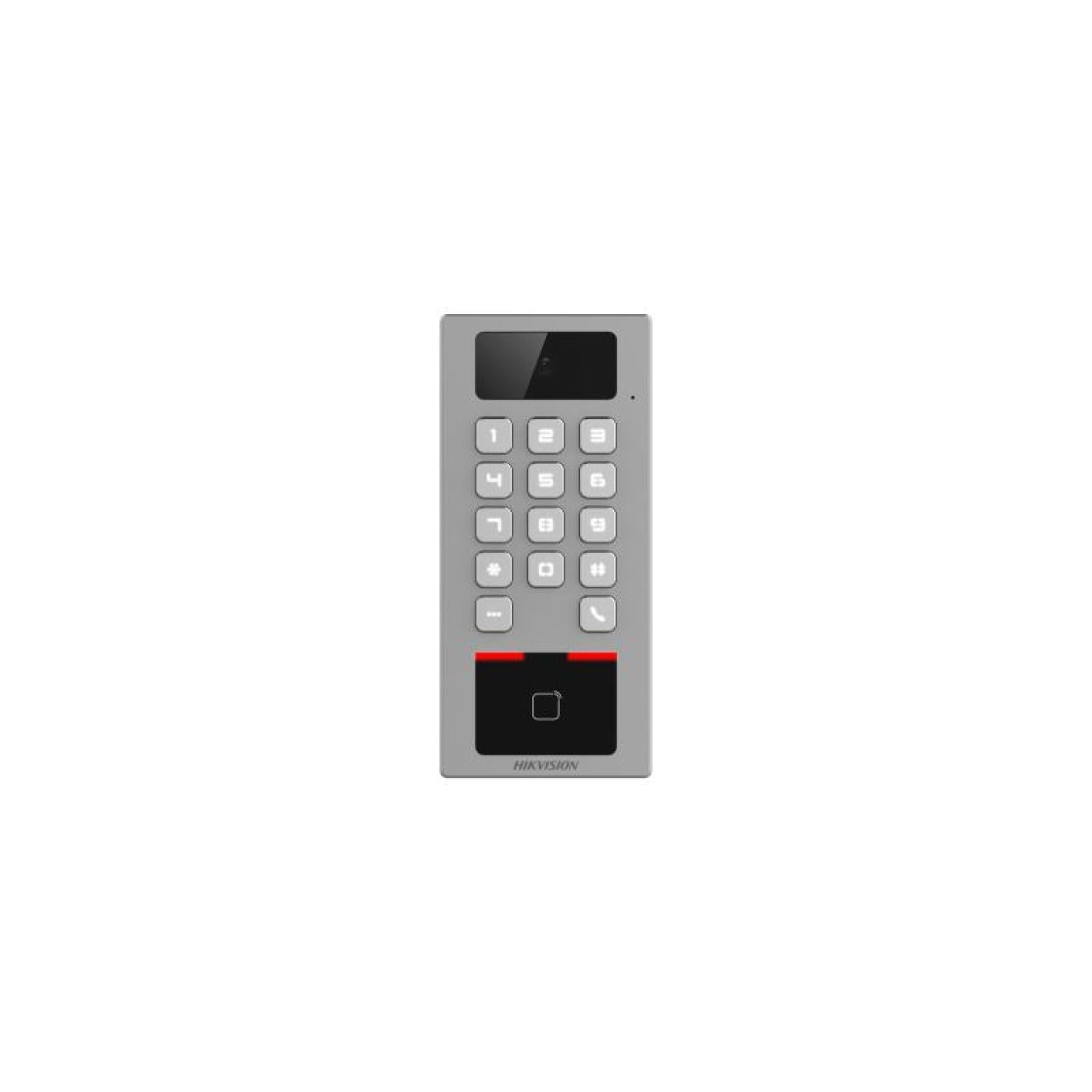

Hikvision DS-K1T502DBWX-C 2MP Access Control Terminal
The Hikvision DS-K1T502DBWX-C combines access control and video intercom in a zinc-alloy terminal. Its 2 MP camera, microphone and loudspeaker support visitor viewing and conversation, while M1 or DESFire cards and PIN codes provide configured entry methods. The terminal supports wired Ethernet, 2.4 GHz Wi-Fi, Hik-Connect and SIP video intercom. Wiegand and RS-485 interfaces support compatible system connections. It requires a 12 VDC to 24 VDC supply and has IP65 and IK09 protection. Select the power source, lock hardware and any external reader or controller needed for the installation. This is not a PoE-powered terminal or a complete door-lock kit. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-K1T502DBWX-C is
The Hikvision DS-K1T502DBWX-C brings a camera and calling function to an access-control keypad. It suits an entrance where visitor communication and resident credentials need to be handled at the same panel.
Decide how the terminal will participate in the site system before connecting external equipment. Its built-in access controller and supported interfaces provide options, but those options do not mean every external controller or SIP system will work without configuration.
This model needs DC power even when Wi-Fi is selected for networking. Plan the supply and lock circuit separately; the terminal is not powered by an ordinary PoE connection.
§ 02Engineering
DS-K1T502DBWX-C specifications
Credentials — M1 or DESFire cards and PIN — configure user access.
Visitor communication — video intercom and two-way audio — speak with visitors.
Network — Ethernet and 2.4 GHz Wi-Fi — choose the data connection.
Integration — Wiegand and RS-485 — connect compatible system devices.
Power — 12 VDC to 24 VDC, 1 A — select a DC supply.
Protection — IP65 and IK09 — plan an appropriate entrance installation.
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP |
| Compression | H.264; H.265 |
| Horizontal field of view | 110° |
| Vertical field of view | 81° |
Access
| Feature | Detail |
|---|---|
| Built-in access controller | Yes |
| Credentials | M1 card; DESFire card; PIN |
| Cards | 100000 |
| Events | 300000 |
Network and audio
| Feature | Detail |
|---|---|
| Network | RJ45 10/100 Mbps; 2.4 GHz IEEE 802.11b/g/n Wi-Fi |
| Intercom | Video intercom; live view; two-way audio |
| Audio | Built-in microphone and loudspeaker |
| Mobile platform | Hik-Connect |
| SIP | Supported |
Interfaces
| Feature | Detail |
|---|---|
| Wiegand | 1; Hik 26-bit and 34-bit |
| RS-485 | 1; half-duplex Hikvision |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
General
| Feature | Detail |
|---|---|
| Material | Zinc alloy |
| Power input | 12 VDC to 24 VDC, 1 A |
| Power consumption | Up to 12 W |
| PoE power | No |
| Protection | IP65; IK09 |
| Video — Camera | 2 MP |
|---|---|
| Video — Compression | H.264; H.265 |
| Video — Horizontal field of view | 110° |
| Video — Vertical field of view | 81° |
| Access — Built-in access controller | Yes |
| Access — Credentials | M1 card; DESFire card; PIN |
| Access — Cards | 100000 |
| Access — Events | 300000 |
| Network and audio — Network | RJ45 10/100 Mbps; 2.4 GHz IEEE 802.11b/g/n Wi-Fi |
| Network and audio — Intercom | Video intercom; live view; two-way audio |
| Network and audio — Audio | Built-in microphone and loudspeaker |
| Network and audio — Mobile platform | Hik-Connect |
| Network and audio — SIP | Supported |
| Interfaces — Wiegand | 1; Hik 26-bit and 34-bit |
| Interfaces — RS-485 | 1; half-duplex Hikvision |
| Interfaces — Lock control | 1 |
| Interfaces — Exit button | 1 |
| Interfaces — Door contact input | 1 |
| General — Material | Zinc alloy |
| General — Power input | 12 VDC to 24 VDC, 1 A |
| General — Power consumption | Up to 12 W |
| General — PoE power | No |
| General — Protection | IP65; IK09 |
§ 08Questions
Frequently asked about the DS-K1T502DBWX-C
Q.01
What does the DS-K1T502DBWX-C combine?
Q.02
What camera is provided?
Q.03
Which credentials can be used?
Q.04
Can it be powered by PoE?
Q.05
Does it support wireless networking?
Q.06
Can it connect to other access equipment?
Q.07
Is the power supply or door lock included in this listing?
