Hikvision DS-K1T502DBWX Access Control Terminal
1 1
Hikvision

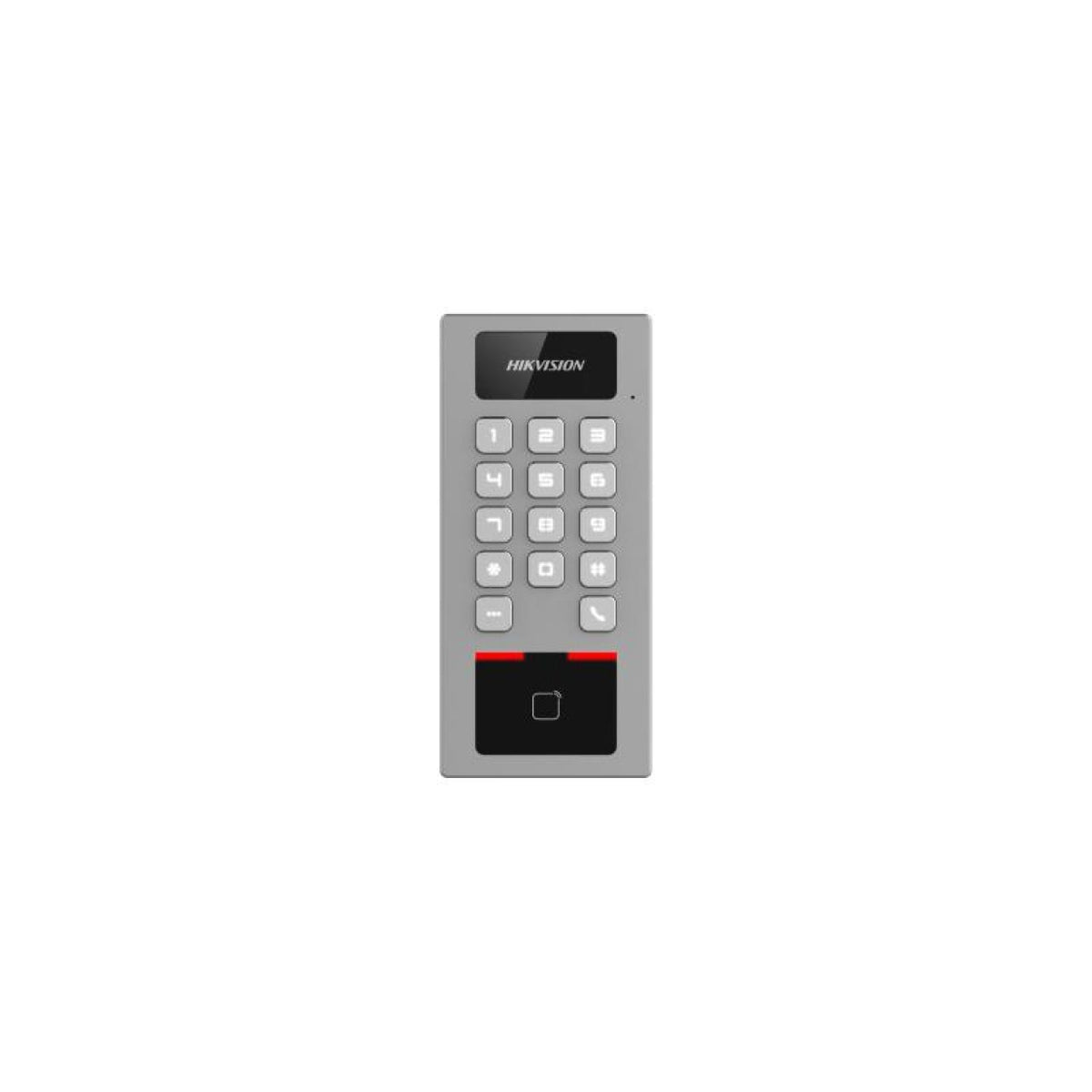

Hikvision DS-K1T502DBWX Access Control Terminal

SKU: DS-K1T502DBWX
Description

The Hikvision DS-K1T502DBWX combines access control and audio intercom in a zinc-alloy terminal. M1 or DESFire cards and PIN codes provide configured entry methods, while the microphone and loudspeaker support two-way audio. It supports Ethernet, 2.4 GHz Wi-Fi, SIP intercom and Hik-Connect. Wiegand and RS-485 interfaces support compatible system connections. The terminal uses a 12 VDC to 24 VDC supply and has IP65 and IK09 protection. This is the non-camera model, not the DS-K1T502DBWX-C. Select the power source, lock hardware and any external reader or controller required for the installation. Download the official Hikvision datasheet (PDF).
$405.00 AUD $405.00 AUD $425.25 AUD
Sale 4.76% $20.25 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-K1T502DBWX is

The Hikvision DS-K1T502DBWX brings credential entry and audio calling to an access-controlled entrance. Its keypad and card-reading area provide a local interaction point for authorised users.

Match the interfaces to the wider installation. A compatible external controller or card reader may form part of the design; neither should be assumed to be included with the terminal.

Allow for DC power even when using Wi-Fi. This listing is the non-camera terminal, so do not select it when a built-in video camera is required.

§ 02Engineering

DS-K1T502DBWX specifications

Hikvision DS-K1T502DBWX credentials — M1, DESFire and PIN — configure entry methods.
Audio — microphone and loudspeaker — support two-way conversation.
Intercom — SIP — connect a compatible calling system.
Networking — Ethernet and 2.4 GHz Wi-Fi — choose the connection method.
External interfaces — Wiegand and RS-485 — plan compatible system connections.
Power — 12 VDC to 24 VDC, 1 A — provide the required DC supply.
Protection — IP65 and IK09 — plan an appropriate entrance installation.

§ 03Full datasheet

Detailed specifications

Access

Access — Hikvision DS-K1T502DBWX Access Control Terminal
FeatureDetail
Methods M1 card; DESFire card; PIN
Card capacity 100000
Built-in controller Yes

§ 08Questions

Frequently asked about the DS-K1T502DBWX

Q.01

Does the DS-K1T502DBWX have a camera?
This is the non-camera terminal. Do not confuse it with the camera-equipped DS-K1T502DBWX-C.
Q.02

Which credentials can it use?
It supports M1 cards, DESFire cards and configured PIN codes.
Q.03

Can it support an audio conversation?
Yes. It has a built-in microphone and loudspeaker with two-way audio and SIP intercom support.
Q.04

Does it use PoE?
The specified power input is 12 VDC to 24 VDC, 1 A. Do not plan this terminal as a PoE-powered device.
Q.05

Can it connect over Wi-Fi?
Yes. It supports 2.4 GHz Wi-Fi as well as wired Ethernet; power is still required.
Q.06

Which external system interfaces are available?
Wiegand and RS-485 interfaces support compatible access-system connections. Check the specific controller or reader before ordering.
Q.07

Is lock hardware included?
This is the terminal listing, not a complete lock kit. Select suitable power, lock hardware and any external system components separately.
