Dahua VTM416 Lift Controller
1 1
Dahua

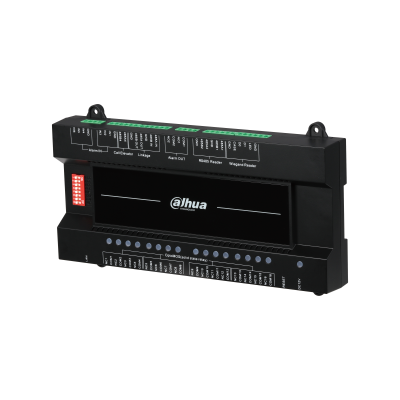

Dahua VTM416 Lift Controller

SKU: VTM416
Description

The Dahua VTM416 is a lift access controller with 16 relay outputs for a compatible building access system. It provides TCP/IP, RS-485 and Wiegand connections, with six alarm inputs and two alarm outputs. Up to eight controllers can be cascaded for permission control covering up to 128 floors. Power uses 12 VDC or IEEE 802.3af PoE. Have the lift and access-control integration specified for the building, including the fire-alarm interface and compatible readers. Download the official Dahua datasheet (PDF).
$319.00 AUD $319.00 AUD $334.95 AUD
Sale 4.76% $15.95 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the VTM416 is

The Dahua VTM416 manages lift floor permissions as part of an integrated access system. It is a controller for a designed installation, rather than a standalone passenger interface.

Plan reader connections, the lift interface and the fire-alarm arrangement with the responsible installer. The supported cascading capacity does not make it universally compatible with every lift system.

§ 03Full datasheet

Detailed specifications

Interfaces

Interfaces — Dahua VTM416 Lift Controller
FeatureDetail
Relay outputs 16
Alarm inputs 6; first input for fire alarm
Alarm outputs 2
RS-485 4
Wiegand 1
Communication TCP/IP; RS-485; Wiegand
